Developed by the POLOMADERA Program at the University of Concepción, the 3D Building Construction Solutions Catalog is a free tool that helps users design construction details for lightweight wooden structural systems.
Though created with the intention of meeting new standards soon to be implemented nationally in Chile (and therefore in Spanish), the catalog was developed jointly with international experts from the Wood Construction Institute at the Holzbau Institut in Germany, and thus incorporates best practices that are applicable around the world.
The catalog allows users to find and download different construction solutions in wood, with details categorized under Foundations, Mezzanines, Doors and Windows, Partitions, Roofs, and Terraces.
Raft Foundation with Basement.
Strip Foundation with Floor Framing.
Intersection with Exterior Facing.
Projecting on Outer Face.
Estructural Partition with Space for Installations.
Intersection with Angle Greater than 180 Degrees.
Output of Unheated Ducts.

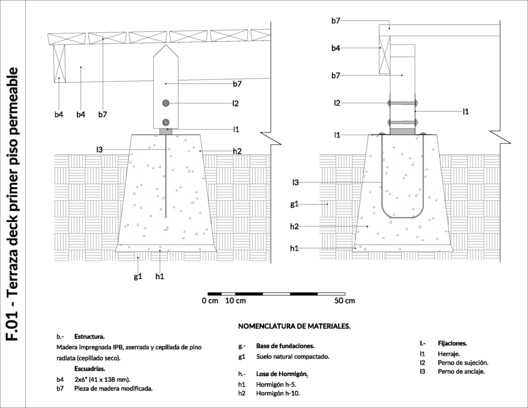

Terrace Deck of a Permeable First Floor.
Habitable Flat Roof with Sill.
This catalog is completely free and is available (in Spanish) here.
